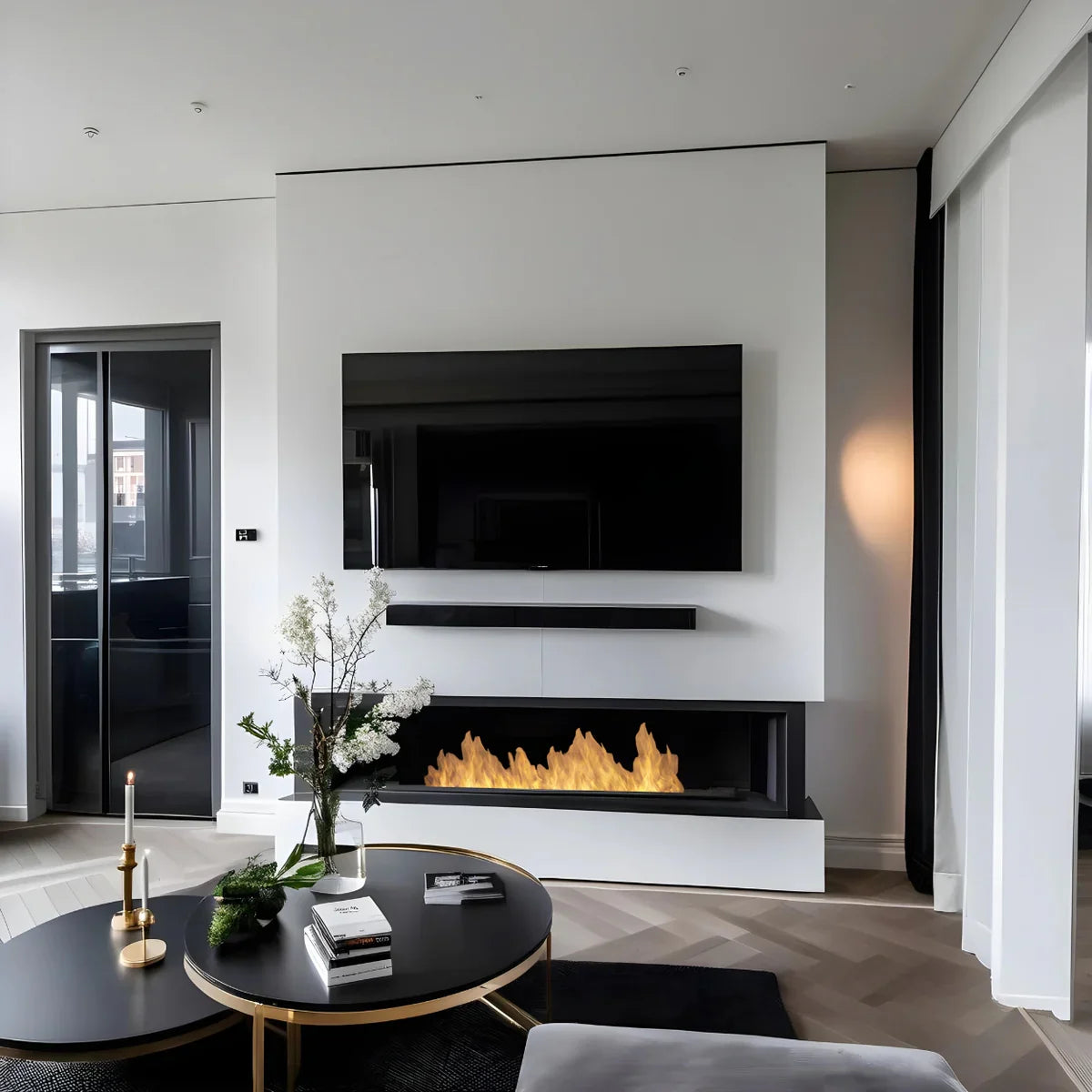

Installing a Cinewall with a Bio-Ethanol Burner: A Step-by-Step Guide to a Unique and Safe Design
Creating a cinewall with a bioethanol burner is a great way to add a modern and stylish element to your living room. A cinewall combines a television and a fireplace in a single, integrated design, offering both ambiance and functionality. Bioethanol burners are a popular choice due to their environmental friendliness and the fact that they don't require a flue. In this blog post, we'll discuss the steps needed to install a cinewall with a bioethanol burner safely and aesthetically.
When installing a bioethanol burner, it's crucial to observe safety. Place the burner as close to the front of the structure as possible. Maintain a minimum depth of 40 cm to allow sufficient space for heat distribution. Ensure the height is at least 60 cm to create sufficient distance between the flame and the top of the niche. It's also important to maintain a minimum distance of 15 cm from the side walls to prevent overheating and fire hazards. By following these guidelines, you'll create a safe and efficient installation for your bioethanol burner.
Step 1: Choose the Location and Type of Fireplace
Before you begin building your cinewall, it's important to choose the right location. The location should not only be aesthetically pleasing but also practical and safe. Make sure you have sufficient space for both the TV and the built-in fireplace. Furthermore, the chosen location should be free of flammable materials and well-ventilated.
There are several types of fireplaces to choose from, including single-sided, corner, see-through, and three-sided. Each type has its own unique features and benefits, so it's important to choose one based on your preferences and the specific needs of your space.
Step 2: Build a Sturdy Frame:
Building a sturdy frame is crucial for the stability and safety of your cinewall. Use high-quality wooden beams that are strong enough to support both the TV and the bioethanol burner. Make sure the frame is securely fastened to the wall and floor to prevent movement or instability.
When designing the frame, consider the dimensions of both the TV and the fireplace insert. A harmonious and balanced look is essential for a well-designed cinewall. Ensure the dimensions of the TV and fireplace are coordinated to create an aesthetically pleasing look.
Step 3: Install the Burner According to the Safety Instructions
Installing the bioethanol burner is a crucial step that requires precision and attention to detail. Follow the manufacturer's safety instructions carefully to ensure the burner is installed safely and correctly. This includes adhering to the minimum dimensions and clearance requirements, as well as ensuring adequate ventilation to prevent overheating.
For automatic burners, it's recommended to seek professional assistance for installation. This ensures the burner is installed correctly and reduces the risk of errors that could compromise safety.
Step 4: Finish the Cinewall with the Desired Material.
After the frame is built and the burner is installed, it's time to finish the Cinewall. Cover the frame with fire-resistant panels for additional safety. Materials such as natural stone, Fermacell panels, Promatect fire-resistant panels, or metal panels are excellent choices for this purpose.
A modern and sleek look can be achieved by having the burner milled into the frame. Alternatively, the burner can be fixed to the plate for a flexible and customizable solution. The choice of material and finish depends on your personal preference and the desired look of the cinewall.
Step 5: Check Everything Thoroughly Before Use
Before using the cinewall, it is essential to check everything thoroughly. Make sure that all components are installed correctly and that there are no loose or unsafe elements. Also check that the burner is working properly and that there are no flammable materials nearby.
When installing the TV, it is important to maintain a sufficient distance from the fireplace, at least 80 cm. This prevents excessive heat and possible damage to the TV. For larger built-in fireplaces, it is crucial to contact a professional for the correct distance measurements.
Additional Tips for a Professional Finish
After the frame has been fully covered with fire-resistant plates, you can plaster and smooth the cinewall completely. Once this is dry, you should prime the entire surface thoroughly. After priming, you can paint the cinewall with fire-resistant paint. It's not mandatory to paint the entire cinewall with fire-resistant paint; only the area around the fireplace needs to be painted with fire-resistant paint. You can finish the rest of the cinewall with regular paint. This ensures both safety and a beautiful finish to your cinewall.
Professional Installation Assistance:
When installing automatic bioethanol burners, it's always advisable to seek professional assistance. At Wild Flame, we offer free service to our customers to demonstrate and explain the burner's operation. This provides peace of mind, as you can see the process of refilling the fuel and the burner's operation in action. Always contact Wild Flame, and we'll arrange this for you free of charge.
Conclusion:
Installing a cinewall with a bioethanol burner offers unique design possibilities and can be a stylish and functional addition to your living room. By following the right steps and paying attention to the details, you can create a beautiful and safe cinewall. Whether you choose a single-sided fireplace, a corner fireplace, a see-through fireplace, or a three-sided fireplace, the possibilities are endless. Don't forget to seek professional help if necessary and enjoy the warm and inviting ambiance a bioethanol fireplace can provide.
